Description

Parts List Rear Assembly Body Assembly Front Assembly Chassis Assembly Transmission Assembly

BIGGER AND STRONGER THAN EVER!

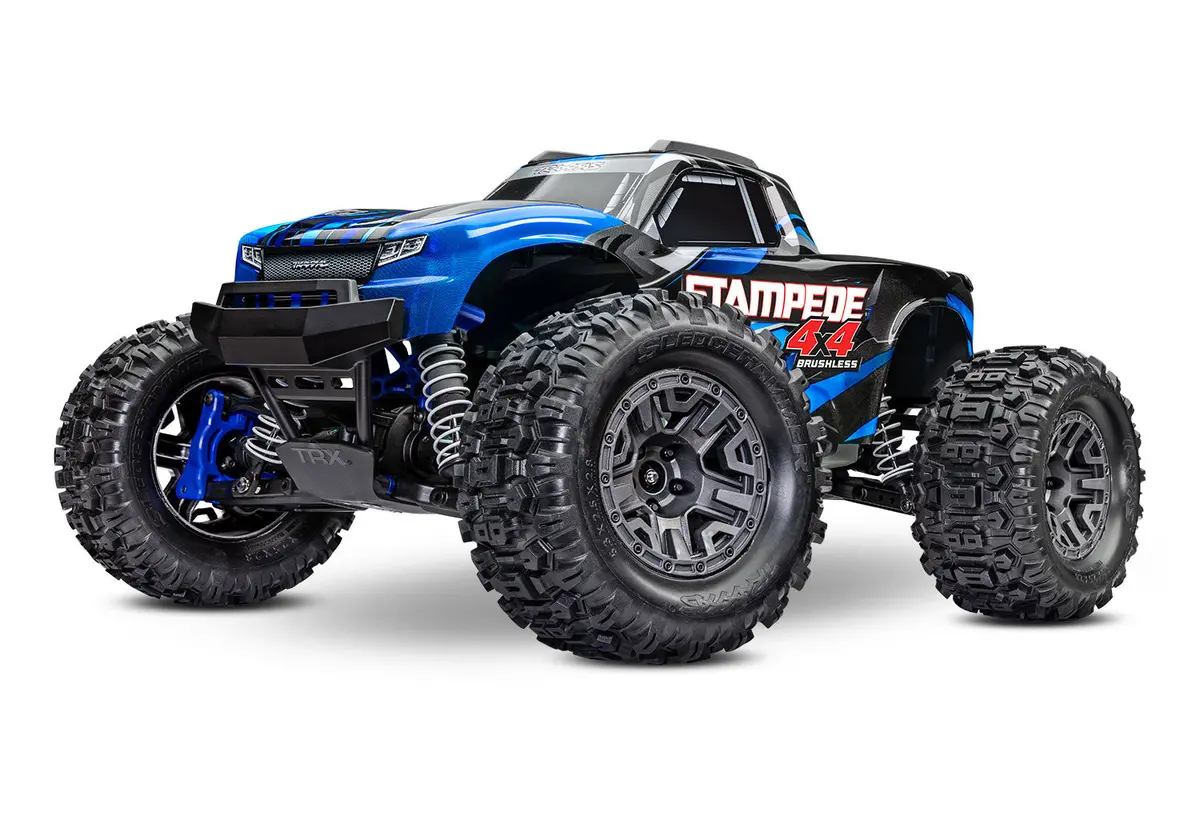

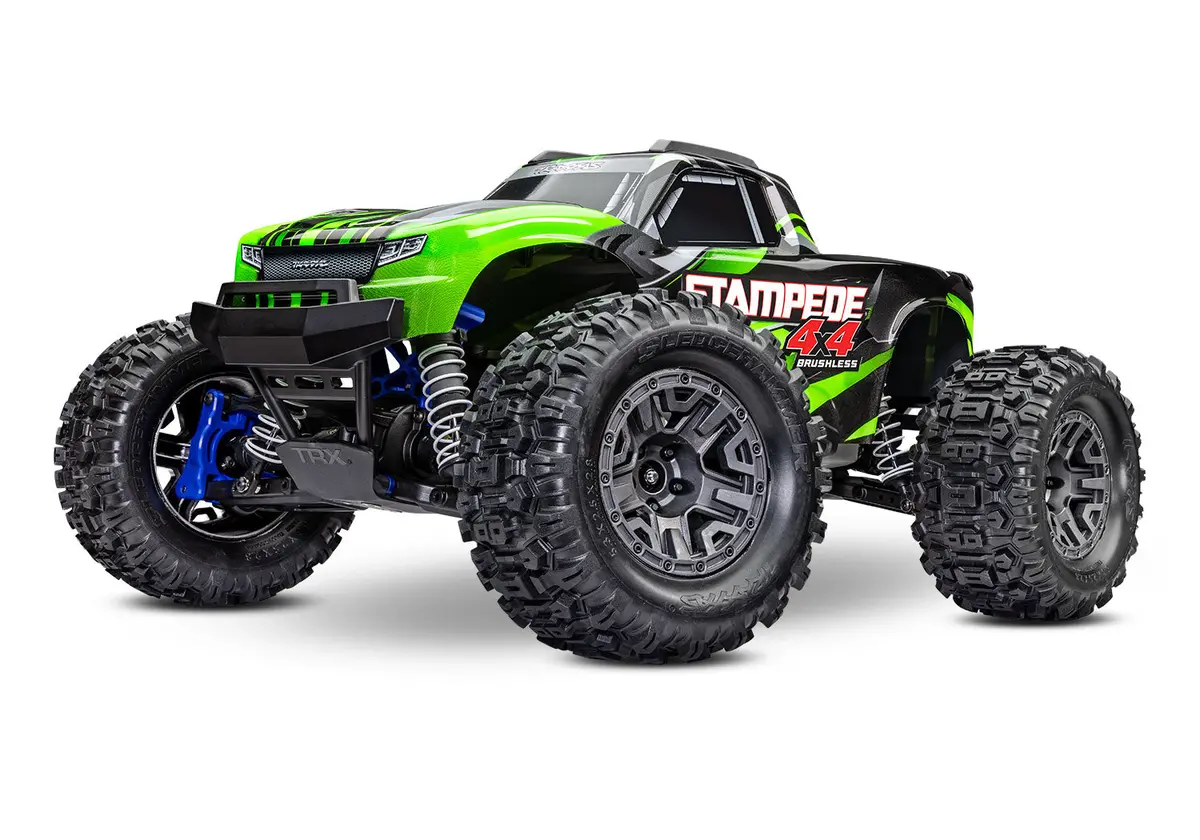

Stampede^® 4X4 is bigger and stronger than ever with a new clipless body, extended chassis, and huge 5.3″ Sledgehammer^® tires for an aggressive monster truck stance. Stampede’s all-new BL-2s^™ brushless power system delivers effortless power for all-day fun with an added boost of torque for terrain-shredding burnouts and powerful acceleration. Stampede 4X4 also comes standard with Traxxas’ Extreme Heavy Duty Upgrade Kit to become the new standard for strength and durability.

NEW BL-2S BRUSHLESS POWER SYSTEM

Stampede 4X4’s BL-2s brushless power system ramps up the fun with up to 60% more speed and faster acceleration than comparable brushed power systems. Improved efficiency, high-speed ball bearings, and an internal cooling fan allow Stampede 4X4 to run battery after battery for all-day fun. With no brushes to wear out, the BL-2s 3300 kV is long-lasting and requires virtually no maintenance.

EXTREME HEAVY DUTY UPGRADE KIT

Stampede 4X4’s pre-installed Extreme Heavy Duty Upgrade Kit replaces key drivetrain and suspension components with beefed-up parts made for ultimate strength and durability. From the HD suspension arms to the steel wheel hubs, this is the strongest driveline ever offered in a Stampede.

CLIPLESS BODY MOUNTING

Stampede 4X4 now uses a clipless body latching system for secure mounting and fast, one-handed removal and installation. A rugged internal cage attaches to the body with molded reinforcements to prevent pull-through damage. Tough roof and tailgate skids protect the body in the event of a rollover.

• Clipless Body
  • Tough reinforced bumpers
  • Reinforced inner cage
  • Rugged roof rollover protector
  • Tailgate protector
  • Quick and easy removal
  • Holds tight for intense action

• Extreme Heavy Duty Upgrade Kit Installed
  • Strengthened C-hubs, axle carriers, and steering blocks
  • Extreme heavy duty driveshafts
    • Oversize diameter
    • 6 mm axles
    • Steel wheel hexes

• TQ^™ 2.4 GHz Transmitter
  • Full-size 2-channel transmitter
  • All-day comfort with precise long-range control

• BL-2s^™ Waterproof Electronic Speed Control
  • Heat sink accepts accessory cooling fan
  • Three Programmable Drive Profiles
    • Sport Mode – Forward / Brake / Reverse
    • Race Mode – Forward / Brake
    • Training Mode^™ – 50% Forward / Brake / 50% Reverse (patented)
  • Traxxas EZ-Set^® one-button setup
  • Built-in two-stage low-voltage detection for LiPo batteries
  • NiMH battery packs: 4-7 cells (4.8 to 8.4 volts)
  • LiPo battery packs: 2 cells (7.4 volts)
• BL-2s Brushless Motor
  • Integrated cooling fan
  • Low-maintenance design
  • Efficient ball bearings
  • 3300 kV

teering

• Chassis-mounted 2075 servo
• Dual bellcrank design with integrated servo saver

• Chassis
  • Modular composite tub design
  • Secure battery hold-down latch
  • High-angle bumpers

• Suspension
  • Heavy duty suspension arms
  • Oil-filled Ultra Shocks^™
  • White powder-coated springs

• Drivetrain
  • Full-time shaft-driven 4-wheel drive
  • Oil-filled steel gear front and rear differentials
  • Large 32-pitch steel spur gear
• Wheels and Tires
  • Large 2.8” graphite gray wheels
  • Tall 5.3” Sledgehammer^® tires
• Rubber-Sealed Ball Bearings
• Precision Hex Hardware

Length:	17.87 inches (454mm)
Width:	13.10 inches (333mm)
Ground Clearance:	2.44 inches (62mm)
Weight:	5.98 pounds (2.7kg) without batteries
Height:	8.34 inches (212mm)
Wheelbase:	11.62 inches (295mm)
Front Shock Length:	3.45 inches (88mm) – Long
Rear Shock Length:	3.98 inches (101mm) – XX-Long
Tires (pre-glued):	5.3 inches (133mm) tall Sledgehammer®
Wheels:	2.8 inches (71mm) graphite gray wheels
Speed Control:	BL-2s™ electronic speed control
Motor (electric):	BL-2s™ 3300 kV sensorless brushless

Gear Pitch:	32
Overall Drive Ratio:	15.36:1
Differentials:	Hardened steel bevel, sealed, limited slip
Chassis Structure / Material:	Modular composite tub
Brake Type:	Electronic
Drive System:	Shaft driven 4WD
Steering:	Dual bellcrank with integrated servo saver
Radio System:	TQ™ 2.4 GHz (2-channel)
Servo:	Waterproof #2075
Skill Level:	1
Battery Compartment (L/W/H):	162mm x 47mm x 26mm
Required Batteries:	4 “AA” (transmitter)
